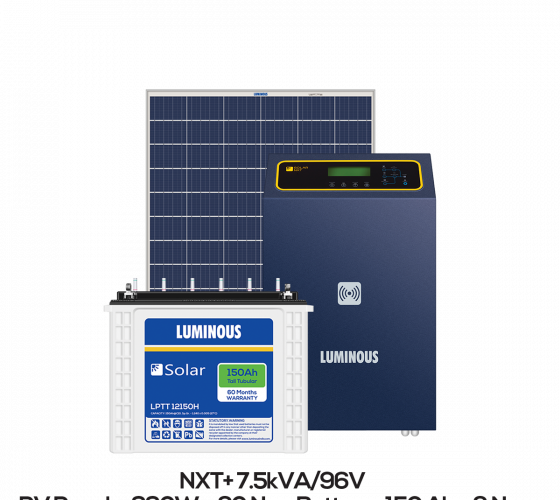

Luminous Solar Off Grid Combo – 7.5 KVA

//Luminous Solar Off Grid Combo – 7.5 KVA

Home UPS / Inverter – NXT 7.5 kVA

  • Rated AC power – 230V, 8.6A, Single phase
  • Max Supported Panel Power -6.6 (kW), Input Voltage Range (Vmp) – 120-210
  • Charge Controller – MPPT, Input Voltage (Voc) 160-240 (extracts upto 30% more power from Panels)
  • Nominal Battery Bank Voltage – 96V (Supports 8 Batteries)
  • Smart device with remote Monitoring through mobile app.

Solar Battery – LPTT12150H

  • 150 Ah Rated Capacity @ C10, 12V
  • Warranty – 60* Months
  • Tubular plate Technology
  • No of Batteries in Combo – 8

Solar Panel – 330W / 24V

  • Capacity – 330W, 24V, Polycrystalline Panel
  • Voltage: Voltage at Max Power (Vmp) – 38.03V, Open Circuit Voltage (Voc) – 45.23V
  • Current: Current at Max Power (Imp) – 8.68A, Short Circuit Current (Isc) – 9.22A
  • 25 years performance warranty.
  • No of Panels in the Combo – 20.
